Promake®GVT آلة تعبئة مستحضرات التجميل ذات الرأس الواحد ، كريم ، لصق آلة تعبئة أوتوماتيكية بالكامل

1.Main parts

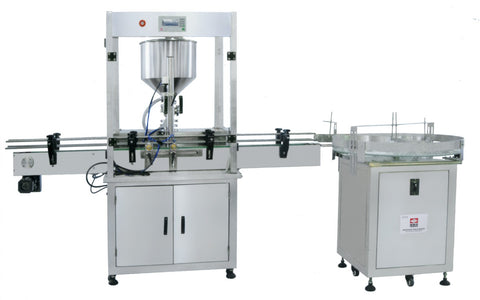

A filling machine(With dustproof Hood)and 114mm wide standard conveyor

2.Working Mode

Quantitative piston type filling automatic bottle feeding, automatic filling, automatic

material feeding system

3.Capacity

100ml bottle:10-40pcs/min(parameters:bath lotion base on 25ºC,viscosity 10pa.s for the test standard,Sufficient material is requested by the factory for an over 10 minutes

test before delivery.

4.Features

Photoelectric system for bottle feeding & returning, upper material feeding and check-valve free mechanical structure, a large gas tank at the bottom ensures

continuously efficient and stable production.

5.Convenience

large adjustment mechanism(Including standard 114 widened conveyor, hand wheel lifting adjustment

device, integral hand wheel adjustment device, single fine-tuning device)for frequent

replacement of bottles.

6.Control

Man-machine touch interface, additional guided tuning module and fault diagnosis

module enable convenient operation and maintenance.

7.Structure

Attractive appearance design,Compact structure

Simple maintenance,no special tools required

8.Warranty

All parts warranty for one year after delivery(except wearing parts)

9.Power

220V   50HZ   1KW

10.Gas source

After drying, working pressure≥6kg/cm2, Gag consumption changes with gross

 output.

11.Weight

About 350kg
